Nguồn Rosewill Glacier 700M – 700W

1,690,000

– 80 Plus Gold-Certified to Deliver over 90% Efficiency
– Modular Cable Management
– ATX 12V V2.3 Ready, Supports EPS 12V 2.92 and Backwards Compatible with ATX 12V 2.01
– Active Power Factor Correction (PFC) with PF Value of 99%
– Crossfire and SLI Support
– Over Current / Voltage / Temperature / Power Protection, Under Voltage Protection and Short Circuit Protection
– Extra-Long Cables Support Full Size Gaming Chassis
– Long lasting, Ultra-quiet 120mm fan
– MTBF >100,000 hours at 80% load, ambient at 25˚C

* (20+4 MainBoard Pin) x1
* (+12V EPS 4+4-Pin) x1
* (6+2-Pin PCI-E) x4
* (S-ATA Connector) x6
* (4-Pin Molex Peripheral) x4
* (4-Pin Floppy) x1

Description

rosewill

rosewill

FEATURES

rosewill

80 Plus Bronze certified to deliver over 85% efficiency

rosewill

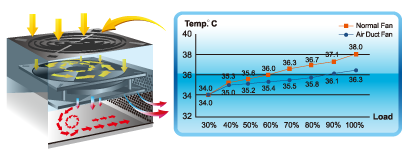

Silent 135mm Aero-Diversion fan with auto-speed control further reduces the heat exhaust from the PSU

rosewill

Modular cable management

rosewill

ATX 12V v2.3-ready, supports EPS 12V v2.92 and backwards compatible with ATX 12V v2.01

rosewill

Active Power Factor Correction (PFC) with PF value of 0.99

rosewill

Crossfire and SLI support

rosewill

Over Current/Voltage/Temperature/Power Protection, Under Voltage Protection and Short Circuit Protection

rosewill

TUV, FCC, CE Certificated

rosewill

rosewill

Extra-long cables support full size gaming chassis

rosewill

Three-Year Warranty

SPECIFICATIONS

Model: Glacier 600M

AC INPUT 100 ~ 240VAC | 10A-5A | 50/60Hz
DC OUTPUT
+3.3V +5V +12V -12V +5VSB
20A 20A 45A 0.3A 2.5A
100W 540W 3.6W 12.5W
TOTAL POWER 600W

CONNECTORS

rosewill
20 + 4-Pin
MainBoard
x 1
rosewill
+ 12V EPS
4 + 4-Pin
Connector
x 1
rosewill
6 + 2-Pin
PCI-E
Connector
x 2
rosewill
S-ATA
Connector
x 6
rosewill
4-Pin Molex
Peripheral
Connector
x 4
rosewill
4-Pin Floppy
Connector
x 1

PACKAGE CONTENTS

  • Power Supply Unit
  • Modular Cable Set
  • User Manual
  • AC Power Cord
  • Three Cable Ties
  • Four Mounting Screws
